Ford cars alloy wheel nuts and bolts

Ford alloy wheel nuts fitment data

by

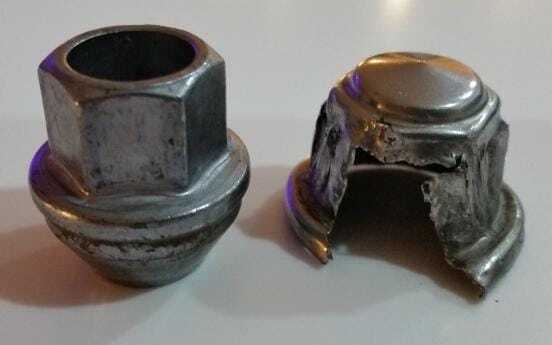

Original Ford alloy wheel nuts often come with a metal cap fitted. These caps are designed to be the main head of the nut, however they are thin and therefore soft and often get damage and even come off. The wheel nut head underneath these caps is not a standard hex size and can cause difficulties when changing tyres as a standard hex wheel brace will not fit.

For this reason many people want to change their Ford alloy wheel nuts. There are other things to look out for when changing the nuts though. The original Ford alloy wheel nuts have a captive washer making the overall width of the nut approx 28mm. This is wider than most aftermarket alloy wheel nuts which are usually around 23-24mm wide.

replacement alloy wheel nuts

Above is an example of a standard aftermarket alloy wheel nut. These nuts are suitable for Ford cars, however they should be used with aftermarket wheels.

Note the the over all width and seat of these nuts.

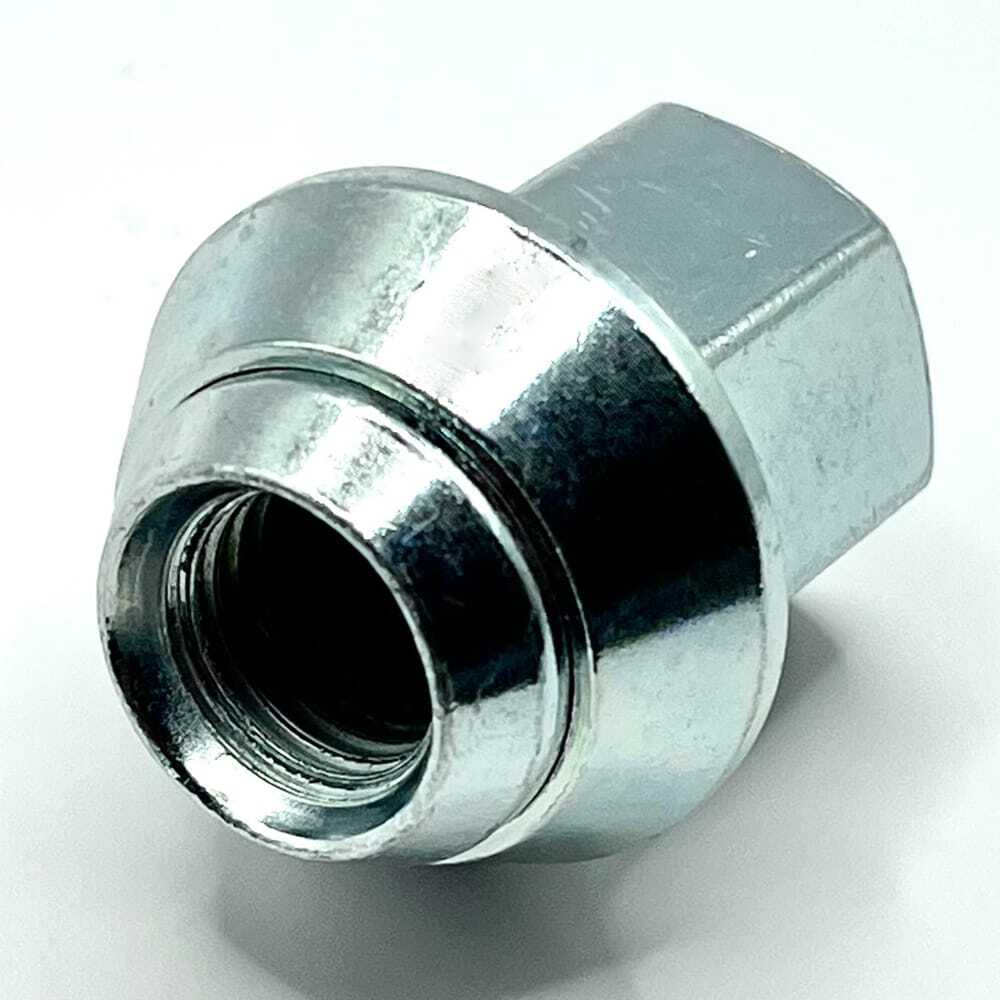

replacement Ford alloy wheel nuts

This is an example of a Ford OE style replacement alloy wheel nut. These are designed to fit original Ford wheels perfectly and what is more they have a solid nut head that will not get damaged or come off unlike the original Ford alloy wheel nuts.

Note the the over all width and the washer.

Find your Ford car model below for alloy wheel nuts and bolts data

Ford C-Max

Alloy wheel fixing – Nuts

PCD – 5 x 108

Thread Size – M12 x 1.5

Hex Size – 19mm

Seat Type – Tapered

[products_mixed layout=”listing” orderby=”date” order=”desc” ids=”8524,8591″ title=”Matching products”]

Ford Cortina

Alloy wheel fixing – Nuts

PCD – 4 x 108

Thread Size – M12 x 1.5

Hex Size – 19mm

Seat Type – Tapered

Ford Cougar

Alloy wheel fixing – Nuts

PCD – 4 x 108

Thread Size – M12 x 1.5

Hex Size – 19mm

Seat Type – Tapered

Ford Escort Mk2, 5 & 6

Alloy wheel fixing – Nuts

PCD – 4 x 108

Thread Size – M12 x 1.5

Hex Size – 19mm

Seat Type – Tapered

Ford Escort Mk3 & 4

Alloy wheel fixing – Bolts

PCD – 4 x 108

Thread Size – M12 x 1.5

Thread Length – 25mm

Hex Size – 19mm

Seat Type – Tapered

Ford Fiesta Mk2 & 3

Alloy wheel fixing – Bolts

PCD – 4 x 108

Thread Size – M12 x 1.5

Thread Length – 25mm

Hex Size – 19mm

Seat Type – Tapered

Ford Fiesta Mk4, 5, 6, 7

Alloy wheel fixing – Nuts

PCD – 4 x 108

Thread Size – M12 x 1.5

Hex Size – 19mm

Seat Type – Tapered

Ford Focus

Alloy wheel fixing – Nuts

Mk1 & 2 PCD – 4 x 108

Mk3 PCD – 5×108

Thread Size – M12 x 1.5

Hex Size – 19mm

Seat Type – Tapered

Ford Fusion

Alloy wheel fixing – Nuts

PCD – 4 x 108

Thread Size – M12 x 1.5

Hex Size – 19mm

Seat Type – Tapered

Ford Galaxy Mk1 & 2

Alloy wheel fixing – Bolts

PCD – 5×112

Thread Size – M14 x 1.5

Thread Length – 35mm

Hex Size – 19mm

Seat Type – Radius

Ford Galaxy Mk3

Alloy wheel fixing – Nuts

PCD – 5 x 108

Thread Size – M14 x 1.5

Hex Size – 21mm

Seat Type – Tapered

.

Ford Granada / Scorpio

Alloy wheel fixing – Nuts

PCD – 5 x 112

Thread Size – M12 x 1.5

Hex Size – 19mm

Seat Type – Tapered

Ford KA Mk1

Alloy wheel fixing – Nuts

PCD – 4 x 108

Thread Size – M12 x 1.5

Hex Size – 19mm

Seat Type – Tapered.

Ford KA Mk2

Alloy wheel fixing – Bolts

PCD – 4 x 98

Thread Size – M12 x 1.25

Thread Length – 22mm

Hex Size – 19mm

Seat Type – Tapered

Ford Kuga

Alloy wheel fixing – Nuts

PCD – 5 x 108

Thread Size – M12 x 1.5

Hex Size – 19mm

Seat Type – Tapered

Ford Mondeo Mk1, 2, 3, 4 ,5

Alloy wheel fixing – Nuts

MK1 & 2 – PCD – 4 x 108

Mk3, 4 and 5 – PCD – 5 x 108

Thread Size – M12 x 1.5

Hex Size – 19mm

Seat Type – Tapered

Ford Probe

Alloy wheel fixing – Nuts

PCD – 5 x 114

Thread Size – M12 x 1.5

Hex Size – 21mm

Seat Type – Tapered

Ford Puma

Alloy wheel fixing – Nuts

PCD – 4 x 108

Thread Size – M12 x 1.5

Hex Size – 19mm

Seat Type – Tapered

Ford Ranger

Alloy wheel fixing – Nuts

PCD – 6 x 139

Thread Size – M12 x 1.5

Hex Size – 21mm

Seat Type – Tapered

Ford Sierra

Alloy wheel fixing – Nuts

PCD – 4 x 108

Thread Size – M12 x 1.5

Hex Size – 19mm

Seat Type – Tapered

.

Ford S-Max

Alloy wheel fixing – Nuts

PCD – 5 x 108

Thread Size – M14 x 1.5

Hex Size – 21mm

Seat Type – Tapered

Ford Transit Connect

Alloy wheel fixing – Nuts

PCD – 5 x 108

Thread Size – M12 x 1.5

Hex Size – 19mm

Seat Type – Tapered

[products_mixed layout=”slider” orderby=”date” order=”desc” title=”Products that will fit Ford cars” ids=”8530,8524,8008,8591,8541,8532,8537,8526″]

This post provides information about Ford alloy wheel nuts fitting data, check our other car make fitment data pages for different models.
